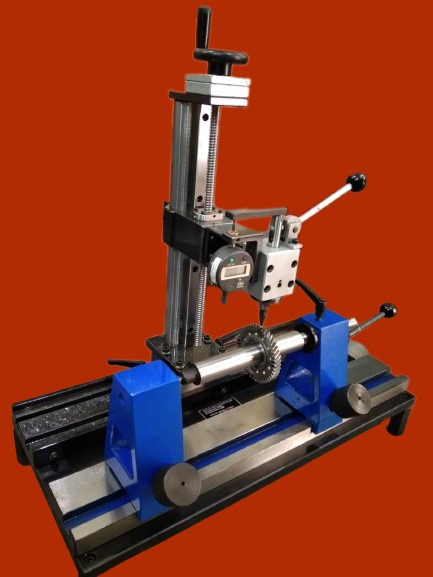

Gear PCD. Runout Checking Centre
- This Instrument Is Used For Checking The Spur & Helical Gear PCD. Runout
- We Use High Quality Steel For Making The Gauges
Specification :
| Between Centre | = 200/300/500mm |
| Centre Height | = 150mm |
| Table Length | = 440/500/700mm |
| Table Movement | = 100mm On Both Side |
| Vertical Stroke | = 160mm |
| Gear Checking Capacity | = OD. 10mm to 300mm |
| Least Count | = 0.001mm |
| Repeatability | = Within 5 Micron |
